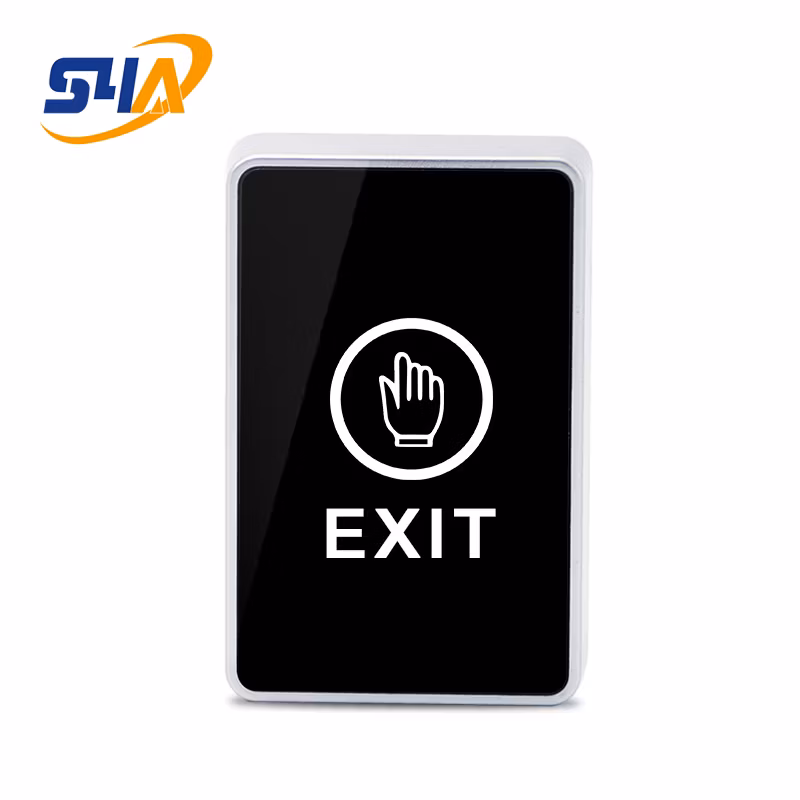

Door Exit Touch Button 12V Door Switch Touch Stainless steel Panel with LED light
Model No: EB-11
How does a door switch work?
Almost all door and window sensors use a "reed switch" to determine when a protected area has been breached. ... A reed switch consists of a set of electrical connectors placed slightly apart. When a magnetic field is placed parallel to the electrical connectors, it pulls them together, closing the circuit.
Dimensions | 86 X 50 X 20mm |
Standard Structure | Stainless steel Panel, Steel Button |
Current Rating | 3A,36VDC Max |
Output Contact | +12V GND NO NC COM |
Mechanical Life | 1000000 tested |
Suitable for Door | Hollow Door |
Operating temp | -10~+55°C(14-131F) |
Operating Humidity | 0-95% (non- condensing) |
